AWS RDS Log Monitoring with WhaTap

Hello, I am Jungmin Choi from WhaTap Labs DevOps team. In this article, I will introduce why we developed WhaTap RDS Log, which allows you to view Log and Event from AWS RDS with WhaTap Log Monitoring, its motion structure, and installation script.

References: WhaTap Log Monitoring

Motivation

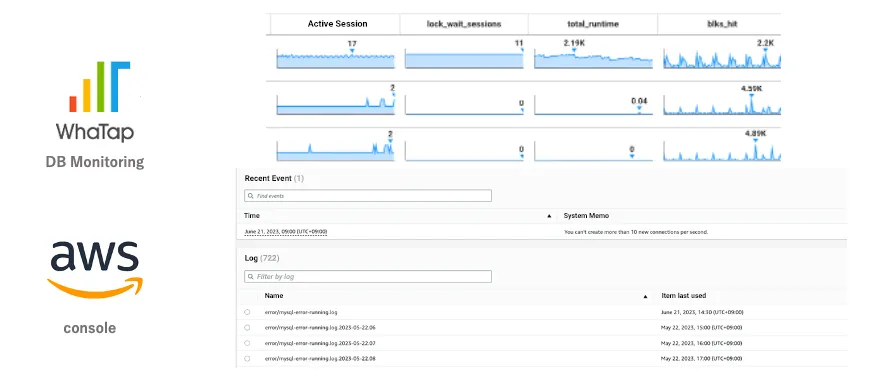

When monitoring AWS RDS with only the existing WhaTap DB Monitoring, you had to install WhaTap DB Monitoring on AWS RDS to check the metric of DB Monitoring, and then check it in the Log and Event AWS Console as shown in the figure below.

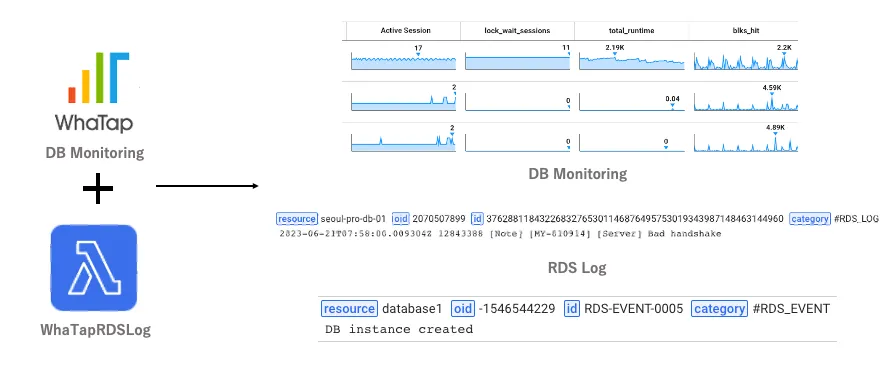

I felt uncomfortable about this and thought that WhaTap DB Monitoring provides complete monitoring of AWS RDS if you can check the Log and Event of AWS RDS in the WhaTap DB Monitoring environment, so I started developing WhaTap AWS RDS LOG.

WhaTap AWS RDS LOG Architecture

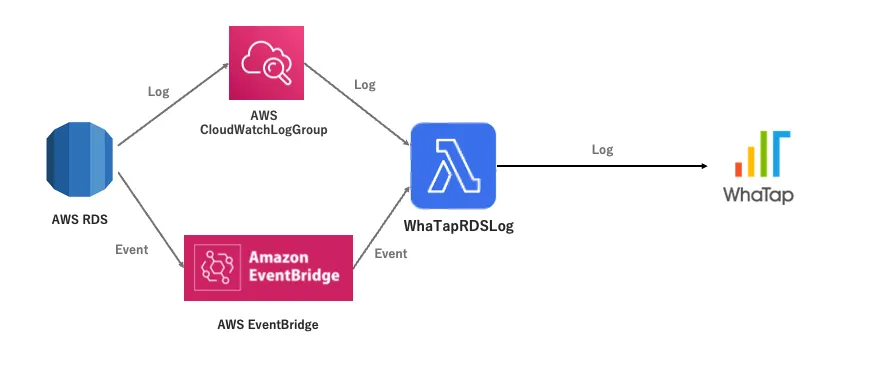

The overall structure of WhaTap AWS RDS LOG is shown in the figure below.

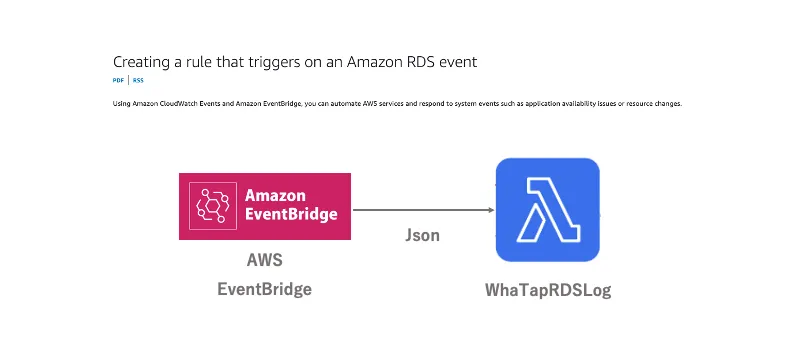

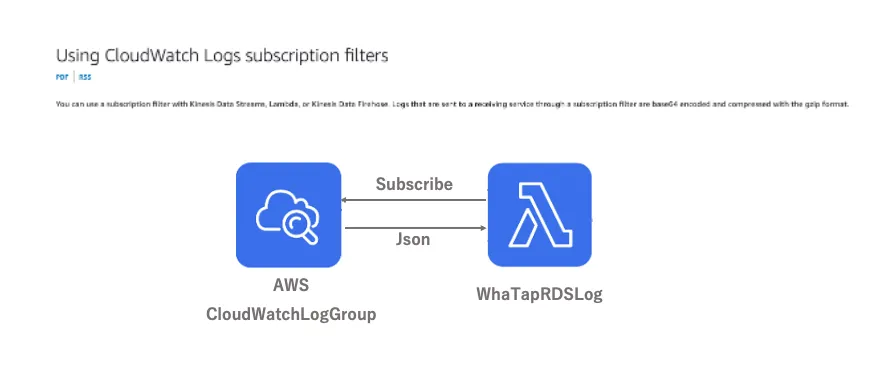

LOG and EVENT generated by AWS RDS are delivered to WhaTap RDS Log through AWS CloudWatch Log Subscription Filter and AWS EventBridge (Event Rule), respectively.

WhaTap RDS Log is executed whenever Logs and Events come into AWS Lambda, parses them, and sends them to WhaTap.

How to get RDS Log & Event

Today, we will see how to process incoming Logs and Events from WhaTap RDS Log with Golang code.

Data classification

WhaTap RDS Log, when run with an incoming Event, first distinguishes whether the Event is an AWS RDS Log or an AWS RDS Event.

AWS RDS LOG and EVENT will be passed to WhaTap RDS Log in the format shown in the example below.

- AWS RDS LOG DATA EXAMPLE

{ 'awslogs': { 'data': 'H4sIAAAAAAAAK15.....' } }

- AWS RDS EVENT DATA EXAMPLE

{ "version": "0", "id": "12a345b6-78c9-01d2-34e5-123f4ghi5j6k", "detail-type": "RDS DB Instance Event", "source": "aws.rds", "account": "111111111111", "time": "2021-03-19T19:34:09Z", "region": "us-east-1", "resources": ["arn:aws:rds:us-east-1:111111111111:db:testdb"], "detail": { "EventCategories": ["notification"], "SourceType": "DB_INSTANCE", "SourceArn": "arn:aws:rds:us-east-1:111111111111:db:testdb", "Date": "2021-03-19T19:34:09.293Z", "Message": "DB instance stopped", "SourceIdentifier": "testdb", "EventID": "RDS-EVENT-0087" } }

To differentiate between them, we defined the EVENT type as shown below and applied it to the Lambda Event Handler.

type AwsRdsEventData struct { Version string `json:"version"` Id string `json:"id"` Type string `json:"detail-type"` Source string `json:"source"` Account string `json:"account"` Time string `json:"time"` Region string `json:"region"` Resources []string `json:"resources"` Detail AwsRdsEventDetail `json:"detail"` Awslog CloudwatchLogsRawData `json:"awslogs"` } package main import ( "log" "rds-forwarder/model" "rds-forwarder/whatap" "github.com/aws/aws-lambda-go/lambda" ) func HandleLambdaEvent(event model.AwsRdsEventData) (model.Response, error) { log.SetFlags(log.LstdFlags | log.Lshortfile) //AWS RDS EVENT if event.Awslog.Data == "" { whatap.SendEvent(event) result := model.Response{Result: "Success to Send Whatap"} return result, nil } else { //AWS RDS LOG logdata, err := model.ParserEvent(event) if err != nil { log.Panic(logdata) } result := model.Response{Result: "Success to Send Log"} whatap.SendLog(logdata) return result, nil } } func main() { lambda.Start(HandleLambdaEvent) }

If the incoming Event is an AWS RDS Log, only the Awslog field has a value and the rest is empty; if it is an AWS RDS EVENT, the Awslog field is empty and the rest has a value. We use this to categorize the data.

Log Decryption

For AWS RDS EVENTs, you can send them in the WhaTap log data format without separate action. However, AWS RDS Logs are base64 encoded and compressed, so you need to decode and decompress them.

- AWS RDS LOG json

{ 'awslogs': { 'data': 'H4sIAAAAAAAAK15.....' } }

- Result of decrypting and decompressing the value of the data field

{ "owner": "123456789012", "logGroup": "CloudTrail", "logStream": "123456789012_CloudTrail_us-east-1", "subscriptionFilters": ["Destination"], "messageType": "DATA_MESSAGE", "logEvents": [ { "id": "31953106606966983378809025079804211143289615424298221568", "timestamp": 1432826855000, "message": "{\"eventVersion\":\"1.03\",\"userIdentity\":{\"type\":\"Root\"}" }, { "id": "31953106606966983378809025079804211143289615424298221569", "timestamp": 1432826855000, "message": "{\"eventVersion\":\"1.03\",\"userIdentity\":{\"type\":\"Root\"}" }, { "id": "31953106606966983378809025079804211143289615424298221570", "timestamp": 1432826855000, "message": "{\"eventVersion\":\"1.03\",\"userIdentity\":{\"type\":\"Root\"}" } ] }

For decryption in WhaTap AWS RDS LOG, we defined the model as follows.

type CloudwatchLogsRawData struct { Data string `json:"data"` } type CloudwatchLogsData struct { Owner string `json:"owner"` LogGroup string `json:"logGroup"` LogStream string `json:"logStream"` SubscriptionFilters []string `json:"subscriptionFilters"` MessageType string `json:"messageType"` LogEvents []CloudwatchLogEvent `json:"logEvents"` } type CloudwatchLogEvent struct { ID string `json:"id"` Timestamp int64 `json:"timestamp"` Message string `json:"message"` } Then, we proceeded with the decryption as follows. func ParserEvent(event AwsRdsEventData) (CloudwatchLogsData, error) { //Define empty structure logdata := CloudwatchLogsData{} //Decrypt and save as binary data rawDecodedText, err := base64.StdEncoding.DecodeString(event.Awslog.Data) if err != nil { return logdata, err } // Decompress the decoded binary data using gzip.NewReader zipReader, err := gzip.NewReader(bytes.NewBuffer(rawDecodedText)) if err != nil { return logdata, err } defer zipReader.Close() // Convert uncompressed data to Go data structures with a JSON decoder dec := json.NewDecoder(zipReader) err = dec.Decode(&logdata) return logdata, err }

Install Script with CloudFormation

The installation and setup scripts for WhaTap RDS Log are written in AWS CloudFormaition to make the process quick and simple for users.

Installation

Parameters: ProjectAccessKey: Description: "Enter your Project Access Key (Management > Project management > Project access key)" Type: String AllowedPattern : ".+" Pcode: Description: "Enter your pcode (Management > Project management > pcode)" Type: String AllowedPattern : ".+" Host: Description: "Enter Whatap Server IP (Management > Agent Installation > Whatap Server)" Type: String Default: "13.124.11.223/13.209.172.35" AllowedPattern : ".+" Port: Type: String Default: 6600 TimeOut: Description: "Lambda runs your code for a set amount of time before timing out. Timeout is the maximum amount of time in seconds that a Lambda function can run. The default value for this setting is 3 seconds, but you can adjust this in increments of 1 second up to a maximum value of 15 minutes." Type: Number Default: 150 MemorySize: Description: "Lambda allocates CPU power in proportion to the amount of memory configured. Memory is the amount of memory available to your Lambda function at runtime. You can increase or decrease the memory and CPU power allocated to your function using the Memory (MB) setting. To configure the memory for your function, set a value between 128 MB and 10,240 MB in 1-MB increments. At 1,769 MB, a function has the equivalent of one vCPU (one vCPU-second of credits per second)." Type: Number Default: 1024 MinValue: 128 MaxValue: 3000 UseReservedConcurrency: Description: "Reserve concurrency for a function to set the maximum number of simultaneous executions for a function. Provision concurrency to ensure that a function can scale without fluctuations in latency. Reserved concurrency applies to the entire function, including all versions and aliases." AllowedValues: - true - false Type: String Default: false ReservedConcurrency: Type: Number Description: "Set Reserved Concurrency" Default: 10 Conditions: useConcurrency: !Equals [ !Ref UseReservedConcurrency, true] noConcurrency: !Equals [ !Ref UseReservedConcurrency, false] Resources: LambdaZipsBucket: Type: AWS::S3::Bucket CopyZips: Type: Custom::CopyZips Properties: ServiceToken: !GetAtt "CopyZipsFunction.Arn" DestBucket: !Ref "LambdaZipsBucket" SourceBucket: !Sub "whatapforwarder" Objects: - !Sub "WhaTapRDSLog.zip" CopyZipsFunctionRole: Type: AWS::IAM::Role Properties: AssumeRolePolicyDocument: Version: '2012-10-17' Statement: - Effect: Allow Principal: Service: lambda.amazonaws.com Action: sts:AssumeRole ManagedPolicyArns: - arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole Path: / Policies: - PolicyName: lambda-copier PolicyDocument: Version: '2012-10-17' Statement: - Effect: Allow Action: - s3:GetObject Resource: - !Sub "arn:aws:s3:::whatapforwarder/*" - Effect: Allow Action: - s3:PutObject - s3:DeleteObject Resource: - !Sub "arn:aws:s3:::${LambdaZipsBucket}/*" CopyZipsFunction: Type: AWS::Lambda::Function Properties: Description: Copies objects from a source S3 bucket to a destination Handler: index.handler Runtime: python3.9 Role: !GetAtt 'CopyZipsFunctionRole.Arn' Timeout: 240 Code: ZipFile: | import json import logging import threading import boto3 import cfnresponse logger = logging.getLogger() logger.setLevel(logging.INFO) s3 = boto3.client('s3') def copy_objects(source_bucket, dest_bucket, objects): """ Copy specified objects from source to destination bucket :param source_bucket: source bucket name :param dest_bucket: destination bucket name :param prefix: source bucket prefix :param objects: list of objects to copy :return: None """ for item in objects: key = item copy_source = { 'CopySource': '/{}/{}'.format(source_bucket, key), 'Bucket': source_bucket, 'Key': key } logger.info('copy_source: [{}]'.format(copy_source)) logger.info('dest_bucket: [{}]'.format(dest_bucket)) logger.info('key: [{}]'.format(key)) s3.copy_object(CopySource=copy_source, Bucket=dest_bucket, Key=key) def delete_objects(bucket, objects): """ Delete specified s3 objects :param bucket: bucket name :param prefix: bucket prefix :param objects: list of object names :return None """ objects = {'Objects': [{'Key': item} for item in objects]} s3.delete_objects(Bucket=bucket, Delete=objects) def timeout_handler(event, context): """ Timeout handling :param event: lambda function event :param context: lambda function context :return None """ logger.error('Execution is about to time out, sending failure response to CloudFormation') cfnresponse.send(event, context, cfnresponse.FAILED, {}, None) def handler(event, context): """ Lambda function handler :param event: lambda function event :param context: lambda function context :return None """ # make sure we send a failure to CloudFormation if the function # is going to timeout timer = threading.Timer((context.get_remaining_time_in_millis() / 1000.00) - 0.5, timeout_handler, args=[event, context]) timer.start() logger.info('Event: [{}]'.format(event)) status = cfnresponse.SUCCESS try: source_bucket = event['ResourceProperties']['SourceBucket'] dest_bucket = event['ResourceProperties']['DestBucket'] objects = event['ResourceProperties']['Objects'] logging.info('SourceBucket=[{}], DestinationBucket=[{}], \ Objects=[{}]'.format( source_bucket, dest_bucket, objects)) if event['RequestType'] == 'Delete': delete_objects(dest_bucket, objects) else: copy_objects(source_bucket, dest_bucket, objects) except Exception as e: logger.error('Exception: %s' % e, exc_info=True) status = cfnresponse.FAILED finally: timer.cancel() cfnresponse.send(event, context, status, {}, None) LambdaExecutionRole: Type: "AWS::IAM::Role" Properties: AssumeRolePolicyDocument: Version: "2012-10-17" Statement: - Effect: Allow Principal: Service: - lambda.amazonaws.com Action: - "sts:AssumeRole" Policies: - PolicyDocument: Version: "2012-10-17" Statement: #Lambda Basic Excution Role - Effect: Allow Action: - "logs:CreateLogGroup" - "logs:CreateLogStream" - "logs:PutLogEvents" Resource: !Sub "arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/lambda/*" PolicyName: forwarderpolicy WhaTapRDSLogReserved: DependsOn: CopyZips Type: AWS::Lambda::Function Condition: useConcurrency Properties: Handler: "main" Code: S3Bucket: Ref: 'LambdaZipsBucket' S3Key: "WhaTapRDSLog.zip" Runtime: "go1.x" MemorySize: Ref : MemorySize Timeout: Ref : TimeOut ReservedConcurrentExecutions: Ref : ReservedConcurrency Environment: Variables: WHATAP_HOST: Ref : Host WHATAP_LICENSE: Ref : ProjectAccessKey WHATAP_PCODE: Ref : Pcode WHATAP_PORT: Ref : Port Role: !GetAtt LambdaExecutionRole.Arn CWPermissionReserved: Type: AWS::Lambda::Permission Condition: useConcurrency Properties: Action: lambda:InvokeFunction FunctionName: !Ref WhaTapRDSLogReserved Principal: !Sub "logs.${AWS::Region}.amazonaws.com" SourceAccount: !Ref "AWS::AccountId" EventBridgePermissionReserved: Type: AWS::Lambda::Permission Condition: useConcurrency Properties: Action: lambda:InvokeFunction FunctionName: !Ref WhaTapRDSLogReserved Principal: events.amazonaws.com SourceAccount: !Ref "AWS::AccountId" WhaTapRDSLog: DependsOn: CopyZips Type: AWS::Lambda::Function Condition: noConcurrency Properties: Handler: "main" Code: S3Bucket: Ref: 'LambdaZipsBucket' S3Key: "WhaTapRDSLog.zip" Runtime: "go1.x" MemorySize: Ref : MemorySize Timeout: Ref : TimeOut Environment: Variables: WHATAP_HOST: Ref : Host WHATAP_LICENSE: Ref : ProjectAccessKey WHATAP_PCODE: Ref : Pcode WHATAP_PORT: Ref : Port Role: !GetAtt LambdaExecutionRole.Arn CWPermission: Type: AWS::Lambda::Permission Condition: noConcurrency Properties: Action: lambda:InvokeFunction FunctionName: !Ref WhaTapRDSLog Principal: !Sub "logs.${AWS::Region}.amazonaws.com" SourceAccount: !Ref "AWS::AccountId" EventBridgePermission: Type: AWS::Lambda::Permission Condition: noConcurrency Properties: Action: lambda:InvokeFunction FunctionName: !Ref WhaTapRDSLog Principal: events.amazonaws.com SourceAccount: !Ref "AWS::AccountId" Outputs: WhaTapRDSLogArn: Condition: noConcurrency Description: "WhaTapRDSLog's Arn" Value: !GetAtt WhaTapRDSLog.Arn WhaTapRDSLogArnReserved: Condition: useConcurrency Description: "WhaTapRDSLog's Arn" Value: !GetAtt WhaTapRDSLogReserved.Arn

Setup

Description: "CloudFormation template for Setting WhaTapRDSLog" Parameters: WhaTapRDSLogArn: Description: "Enter your WhatapRdsForwarder ARN (if WhatapRdsForwarder isn't installed, you have to install it first)" Type: String EventRuleName: Description: "Enter AWS EventBridge Rule Name" Type: String Default: "WhaTapRDSEventRule" AllowedPattern: ".+" AwsRdsNames: Description: "Enter AWS RDS Name (ex database-1, database-2)" Type: List Default: "none, none" AllowedPattern: ".+" RdsLogGroupName1: Description: "Enter your Cloudwatch LogGroup Name that you want to see (ex /aws/rds/database-1/error)" Default: "none" Type: String RdsLogGroupName2: Description: "Enter your Cloudwatch LogGroup Name that you want to see" Type: String Default: "none" RdsLogGroupName3: Description: "Enter your Cloudwatch LogGroup Name that you want to see" Type: String Default: "none" RdsLogGroupName4: Description: "Enter your Cloudwatch LogGroup Name that you want to see" Type: String Default: "none" RdsLogGroupName5: Description: "Enter your Cloudwatch LogGroup Name that you want to see" Type: String Default: "none" RdsLogGroupName6: Description: "Enter your Cloudwatch LogGroup Name that you want to see" Type: String Default: "none" RdsLogGroupName7: Description: "Enter your Cloudwatch LogGroup Name that you want to see" Type: String Default: "none" RdsLogGroupName8: Description: "Enter your Cloudwatch LogGroup Name that you want to see" Type: String Default: "none" RdsLogGroupName9: Description: "Enter your Cloudwatch LogGroup Name that you want to see" Type: String Default: "none" Conditions: Rule : !Not [ !Equals [ !Select [0, !Ref AwsRdsNames], "none" ] ] RDS1 : !Not [ !Equals [ !Ref RdsLogGroupName1, "none" ] ] RDS2 : !Not [ !Equals [ !Ref RdsLogGroupName2, "none" ] ] RDS3 : !Not [ !Equals [ !Ref RdsLogGroupName3, "none" ] ] RDS4 : !Not [ !Equals [ !Ref RdsLogGroupName4, "none" ] ] RDS5 : !Not [ !Equals [ !Ref RdsLogGroupName5, "none" ] ] RDS6 : !Not [ !Equals [ !Ref RdsLogGroupName6, "none" ] ] RDS7 : !Not [ !Equals [ !Ref RdsLogGroupName7, "none" ] ] RDS8 : !Not [ !Equals [ !Ref RdsLogGroupName8, "none" ] ] RDS9 : !Not [ !Equals [ !Ref RdsLogGroupName9, "none" ] ] Resources: WhatapEventBridgeRule: Type: AWS::Events::Rule Condition: Rule Properties: Description: "Event Rule For Monitoring RDS event" EventBusName: default EventPattern: source: - aws.rds detail: SourceIdentifier: !Ref AwsRdsNames State: ENABLED Name: !Ref EventRuleName Targets: - Id : "EventID" Arn : !Ref WhaTapRDSLogArn ConnectRDSLogwithWhatap1: Type: AWS::Logs::SubscriptionFilter Condition: RDS1 Properties: DestinationArn: !Ref "WhaTapRDSLogArn" FilterPattern: " " LogGroupName: !Ref "RdsLogGroupName1" ConnectRDSLogwithWhatap2: Type: AWS::Logs::SubscriptionFilter Condition: RDS2 Properties: DestinationArn: !Ref "WhaTapRDSLogArn" FilterPattern: " " LogGroupName: !Ref "RdsLogGroupName2" ConnectRDSLogwithWhatap3: Type: AWS::Logs::SubscriptionFilter Condition: RDS3 Properties: DestinationArn: !Ref "WhaTapRDSLogArn" FilterPattern: " " LogGroupName: !Ref "RdsLogGroupName3" ConnectRDSLogwithWhatap4: Type: AWS::Logs::SubscriptionFilter Condition: RDS4 Properties: DestinationArn: !Ref "WhaTapRDSLogArn" FilterPattern: " " LogGroupName: !Ref "RdsLogGroupName4" ConnectRDSLogwithWhatap5: Type: AWS::Logs::SubscriptionFilter Condition: RDS5 Properties: DestinationArn: !Ref "WhaTapRDSLogArn" FilterPattern: " " LogGroupName: !Ref "RdsLogGroupName5" ConnectRDSLogwithWhatap6: Type: AWS::Logs::SubscriptionFilter Condition: RDS6 Properties: DestinationArn: !Ref "WhaTapRDSLogArn" FilterPattern: " " LogGroupName: !Ref "RdsLogGroupName6" ConnectRDSLogwithWhatap7: Type: AWS::Logs::SubscriptionFilter Condition: RDS7 Properties: DestinationArn: !Ref "WhaTapRDSLogArn" FilterPattern: " " LogGroupName: !Ref "RdsLogGroupName7" ConnectRDSLogwithWhatap8: Type: AWS::Logs::SubscriptionFilter Condition: RDS8 Properties: DestinationArn: !Ref "WhaTapRDSLogArn" FilterPattern: " " LogGroupName: !Ref "RdsLogGroupName8" ConnectRDSLogwithWhatap9: Type: AWS::Logs::SubscriptionFilter Condition: RDS9 Properties: DestinationArn: !Ref "WhaTapRDSLogArn" FilterPattern: " " LogGroupName: !Ref "RdsLogGroupName9"

REVIEW

As a DevOps engineer, I have mostly focused on using pre-made monitoring, but it was a great experience to actually develop monitoring. I will continue to observe and complement the insufficiencies from the perspective of clients who operate/manage services with WhaTap monitoring.
